Stata Comparing Two Continuous Groups in on Variable
Home > Output
Chapter 7: Comparing two groups using STATA
Figure 7.1 Histogram of two groups on one graph
Figure 7.1 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\ghana.dta", clear label variable rural "type of village" label define rural 1 "Rural" 0 "Semi-urban" label values rural rural histogram bmi if sex==1, width(2) percent ytitle(Percentage of women) /// ylabel(0(5)25) xtitle(Body mass index kg/m2) /// by(, title(Body mass index in 338 semi-rural and 290 urban women in Ghana, size(medium) span) /// note(, color(none) nobox)) by(, legend(off)) by(rural, style(combine) imargin(zero) colfirst)
Figure 7.2 Two pannel or overlapping density plots for two groups
Figure 7.2 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\ghana.dta", clear twoway kdensity bmi if rural, xtitle("BMI (kg/m2)") ytitle(Density) /// title(Body mass index in 338 semi-rural and 290 urban women in Ghana, size(medium) span) /// subtitle(Kernel density plots, size(medium small) span) /// color(blue*.5) lcolor(blue) lwidth(medthick) || /// kdensity bmi if !rural , /// color(red*.1) lcolor(red) lpattern(dash) lwidth(medthick) /// legend(order(1 "semi-rural women" 2 "rural women") col(1) pos(1) ring(0)) Figure 7.3 Box and whisker plot for a continuous variable in two groups
Figure 7.3 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\ghana.dta", clear label variable rural "type of village" label define rural 1 "Rural" 0 "Semi-urban" label values rural rural graph box bmi, over(rural) ytitle(Body mass index (kg/m2)) /// title(Body mass index in 338 semi-rural and 290 urban women in Ghana, size(medium) span) /// subtitle(Box and whisker plots, size(medium)) legend(off)
Figure 7.4 Violin plot for a continuous variable comparing two groups
Figure 7.4 Code
Click here to show code as text
** type 'help vioplot' to see if this package is installed ** if not follow instructions to install into c:\ado\plus ** ssc install vioplot use "C:\Projects\Books\Presenting\data\stataData\ghana.dta", clear label define rural_label 0 "Semi-urban" 1 "Rural" label values rural rural_label vioplot bmi, over( rural) title("BMI in 338 semi-urban, 290 rural women in Ghana") /// ytitle("Body Mass Index Kg/sq metre") Figure 7.5 Dot plot for a continuous variable comparing two groups
Figure 7.5 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\electricity.dta", clear * first collapse the data set to give % with electricty by village collapse (mean) elec36 rural, by(village) label values rural rural label variable rural "Locality" label variable elec36 "% Villages with electricity" dotplot elec36, over(rural) center /// ylabel(0 20 40 60 80 100) /// title("Proportion of subjects in each of 12 villages with electricity n=1013", size(mediumsmall) span) Figure 7.6 Histogram of a variable to check for normality
Figure 7.6 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\pvd.dta", clear histogram sbp, width(15) start(70) frequency normal xlabel(70(20)240) /// title(Histogram of systolic blood pressure with a Normal distrbution curve (n=121), size(small) span)
Figure 7.7 Output for an unpaired t-test
Figure 7.7 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\pvd.dta", clear recode outcome 0=1 1=0 label define outcome 1 "Alive" 0 "Dead", replace label values outcome outcome ttest sbp , by(outcome)
Figure 7.8 Histograms of a skewed variable before and after log transformation

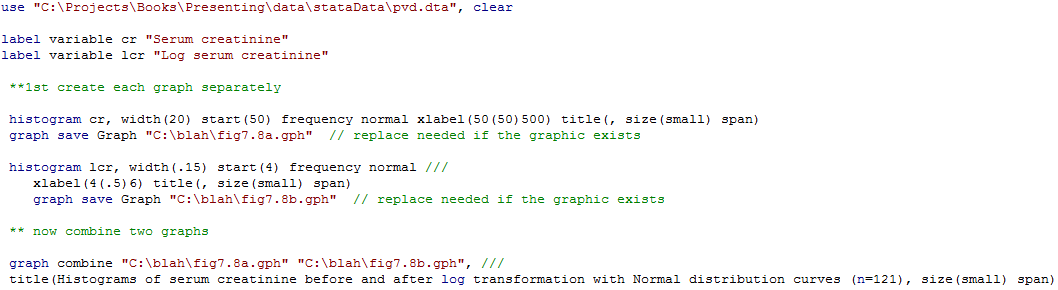

Figure 7.8 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\pvd.dta", clear label variable cr "Serum creatinine" label variable lcr "Log serum creatinine" **1st create each graph separately histogram cr, width(20) start(50) frequency normal xlabel(50(50)500) title(, size(small) span) graph save Graph "C:\blah\fig7.8a.gph" // replace needed if the graphic exists histogram lcr, width(.15) start(4) frequency normal /// xlabel(4(.5)6) title(, size(small) span) graph save Graph "C:\blah\fig7.8b.gph" // replace needed if the graphic exists ** now combine two graphs graph combine "C:\blah\fig7.8a.gph" "C:\blah\fig7.8b.gph", /// title(Histograms of serum creatinine before and after log transformation with Normal distribution curves (n=121), size(small) span)
Figure 7.9 Output for back transforming t-test data
Box 7.4 Presenting the findings of a t-test on log-transformed data
Figure 7.9 Code and Box 7.4
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\pvd.dta", clear ttest lcr, by(outcome)

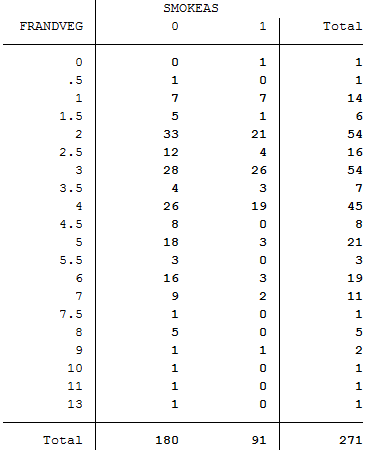

Figure 7.10 Table of data for and output from a Mann-Whitney U test
Figure 7.10 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\eat.dta", clear tabulate frandveg smokeas ranksum frandveg, by(smokeas)
Figure 7.11 Output for chi-square test relative risk and risk difference
Figure 7.11 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\eps.dta", clear label define bv 0 "No" 1 "Yes", replace label values bv bv label define age 0 ">=25" 1 "<25", replace label values age age tabulate bv age, col chi2 cs bv age
Figure 7.12 Output for odds ratio
Figure 7.12 Code
Click here to show code as text
use "C:\Projects\Books\Presenting\data\stataData\crash.dta", clear label define sleep 0 ">5 Hours" 1 "<= Hours", replace label values sleep sleep label define case 0 "Control" 1 "Case", replace label values case case tabulate case sleep, row chi2 cc case sleep
Table 7.1 Presenting ordered proportions
Table 7.1 Code
Click here to show code as text
** the chisquared test for trend isn't in Stata but a user package ptrend can be installed ** to find the pacakge, type 'findit ptrend' ssc install ptrend ** we use the immediate form here for ease ** note these can be calculated from Table 7.1 as 845, 1021-845 etc ** the x1, x2 etc indicate trhe weighting for the categories. we will use 1,2,3 ptrendi 845 176 1\246 90 2\108 46 3
